You can integrate Zoom Phone with Theta Lake to capture your users’ Zoom Phone activity, call logs, SMS, recordings, transcripts and summaries for archiving, analysis, and supervision.
Theta Lake connects to your Zoom Phone instance using Zoom APIs, and captures the calls your users make through Zoom Phone. After the integration is activated, we automatically capture all content you’ve configured for capture, including call recordings, voicemails, call queue recordings, and SMS messages from Zoom Phone and create a record in the Theta Lake platform for each call. Those records are then processed by Theta Lake following the rules specified in the SWRV rules that you configure for the integration.
Prerequisites
Before you add a Zoom Phone integration to your Theta Lake Workspace, make sure that you have the following prerequisites.
- Zoom Phone administrative account
This account must have permissions to view all Zoom Phone recordings for your organization. - Automatic Zoom Phone recording policies to record users or call queues
Zoom Phone recordings must be stored in the Zoom cloud to enable Theta Lake to capture them with Zoom APIs.
For more information, see Viewing Zoom Phone recording logs.
Add a Zoom Phone Integration
After you have gathered all of your prerequisites, you can add an integration for Zoom Phone to your Theta Lake Workspace.
- From the Theta Lake Portal top menu, select Policies.
The Policies Settings menu appears. - Expand the Content Source section and select Collaboration Platforms.
The Collaboration Platforms page appears with your current list of collaboration platform integrations. - Click Add New Integration.
The Add New Integration dialog box appears. - In the Search text box, type Zoom Phone to filter the list of collaboration platforms.
The list of integrations is filtered as you type. - Select Zoom Phone.

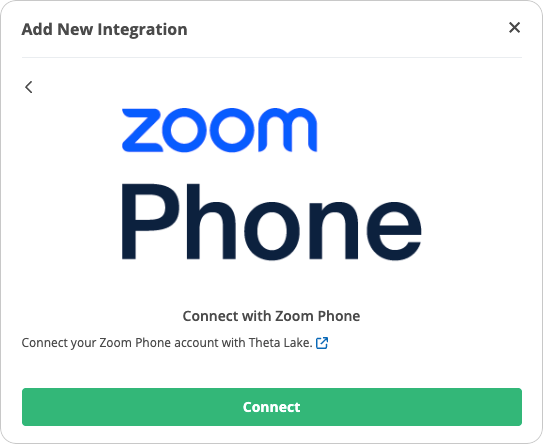

The Add New Integration dialog box appears. - Click Connect.
If you aren't already logged in to your Zoom Phone account, a Zoom Phone authentication page appears. You must provide your administrative account credentials.
A confirmation page appears. - Specify what information Theta Lake has access to.
- Click Allow.
The Theta Lake Edit Integration dialog box appears with the configuration options. - In the Name text box, type a friendly name for this integration.
- (Optional) From the Groups drop-down list, select one or more groups of callers from your Zoom Phone environment.
If you don’t specify a group, we capture recordings from all of your Zoom Phone users. - Select the check box for each Zoom Phone call type that you want to capture.
If you don’t select any options, no calls are captured.- Recordings
- Voicemails
- Call Queues
These are the call queues that you configure in Zoom Phone.
If you don’t specify a queue in the Call Queues list, we monitor all of your call queues. - SMS
- Unrecorded Calls
- Transcripts
The Zoom Phone-provided transcript. - AI Summary
The Zoom Phone-generated AI summary.
- (Optional) From the Call Queues drop-down list, select one or more of your Zoom Phone call queues.
If you don’t specify a call queue, calls are captured for all of your Zoom Phone call queues. - Click Next.
The Save Integration dialog box appears. - Click the button for one of the integration creation options:
- Save And Start — Save the configuration and start capturing media immediately.
- Save And Don’t Start Yet — Save the configuration, but don’t start capturing media.
The integration that you selected is added to your Theta Lake Workspace.
If you choose to wait to start capturing data, you can edit the integration configuration later to start the data capture.
After you complete the integration and start capturing data, Theta Lake connects to your Zoom Phone instance to retrieve call communications and ingest them in the Theta Lake platform as they are produced. We store that record information in the Theta Lake platform, and process and analyze the records based on the policies and SWRV rules that you configure in your Theta Lake Workspace.
You can view all of your ingested records in the Theta Lake Portal and review the communication details, as well as the risk score we’ve calculated for each record. You can also use the Zoom Phone metadata (attributes) to search for records related to Zoom Phone in your Theta Lake Workspace.
Zoom Phone Metadata
When Theta Lake captures Zoom Phone activity, it also captures the related metadata (attributes) and adds it to the Theta Lake record. When you search for a record in your Theta Lake Workspace, you can use the Search filters to locate a record by any of these attributes.
| Attribute Name | Source | Description |
|---|---|---|
| AICallSummaryID | Zoom Call History API | The Zoom-assigned ID to the generated AI Summary for the call |
| CallId | Zoom Call History API | The ID of the phone call |
| CallEndTime | Zoom Call History API | The call end time in GMT format |
| CallLogId | Zoom Call History API | The ID of the call log summary |
| CallResult | Zoom Call History API | The detailed results of an event for a call log |
| CallType | Zoom Call History API | The type of call |
| DateTime | Zoom Call History API | The date and time of the call |
| Direction | Zoom Call History API | The direction of the call |
| Duration | Zoom Call History API | The duration of the call in seconds |
| Owner | Zoom Call History API | The call owner’s extension number, extension ID, name, and type |
| Participants (caller and callee) |
Zoom Call History API | For each participant (caller or callee), this includes the participant name, phone number, and phone number type |
| Path | Zoom Call History API | The call path details |
| RecordingType | Zoom Call History API | The type of call recording |
| RecordingId | Zoom Call History API | The unique identifier of the call recording |
| SiteId | Zoom Call History API | The site ID for the user |
| SiteName | Zoom Call History API | The site name for the user |
| SmsSessionId | Zoom Call History API | The Zoom-assigned ID for the SMS Session |
| HasVoicemail | Zoom Call History API | Whether the call has a voicemail |
